Today we’re excited to share all the F12 features that shipped in the August update to IE11!

In April, we shipped a swath of new features of F12 Developer Tools in Internet Explorer 11 focusing on providing accurate data in the DOM Explorer, actionable data in the memory and performance tools and a smoother debugging experience with Just My Code.

With the IE Developer Channel in June we previewed more features in the F12 Developer Tools and now all of these features are shipping out to all of our customers. It’s a long list which you’ll find below or on MSDN but the highlights are:

With this update to IE11 and F12, we’re keeping the pace of updating the F12 developer tools more often, getting you the latest features and bug fixes as soon as we can. Expect to see and hear from us more and if you’d like to provide feedback, or ask for new features and help simply reach out on Twitter @IEDevChat, or on Connect.

— Andy Sterland, Senior Program Manager, Internet Explorer

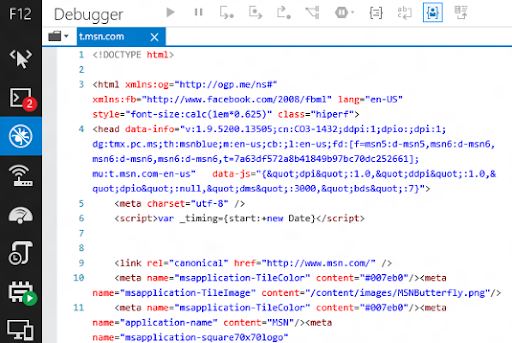

The icons for the Memory and Profiler tools have changed.

There are now indicators on the icon bar for errors in the Console, changes in Emulation settings, and for active profiling sessions in the Memory, Profiler, and UI Responsiveness tools. The image below shows the new icons with notifications on the Console and Memory tool icons, indicating there are two Console errors displaying and that a Memory profiling session is currently in progress.

Using F6 is like using the tab key to navigate around a tool, but it "tabs" through a selected set of the most commonly used elements in a tool pane, rather than through every selectable item. This is part of an overall cleaner system for using the keyboard to navigate within and between tools.

Use CTRL + [ to move backwards in your tool navigation history, CTRL + ] to go forward, much like the back and forward arrows when you're browsing.

Want to access the Document mode without switching tools? We added a new dropdown at the top that gives you access to the document mode from any tool.

When called from the Console or within code, it outputs to the Console the number of milliseconds the current browser tab has been open. If called while running a profiling session with the UI Responsiveness tool, it creates a user mark on the session's timeline with a timestamp based on the time since the session started.

Console's autocomplete no longer includes indexer properties, making for a cleaner and more accurate selection of autocomplete suggestions.

$, $$, $x, $0-$5, and $_ have been added to the Console autocomplete list for the convenience for those who use them and to make the Console's behavior more consistent with other browsers.

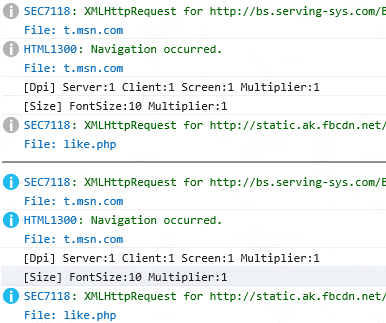

If you have chosen to turn off the Clear on navigate option, older console messages have their icons greyed out to help distinguish between messages for the active page and messages from prior pages in your history.

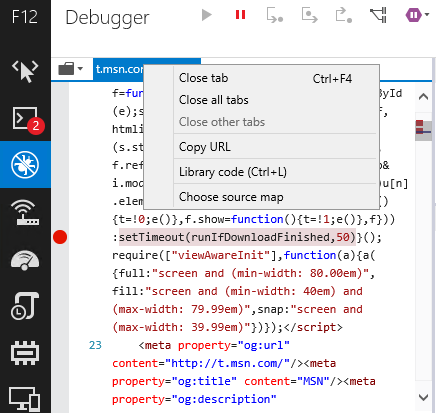

Right-click on a document's tab in the Debugger and you can specify a source map. This makes it possible to use source maps with shipped code that has had the source map comment removed.

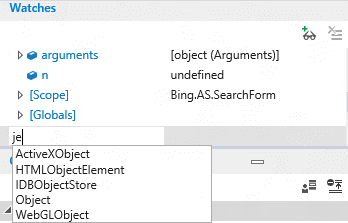

Now, when adding a watch, you get autocomplete options suggested.

When breaking on a function with a return value, step into the function until you've stepped to the closing curly bracket. The return value will be displayed in the Locals portion of the Watches pane. Step again and the value will be returned to the code that called for it.

For a quick demonstration, try this code in the Console:

It will call the function, break on debugger, and you can step into it to see the return value.

CTRL + CLICK, SHIFT + CLICK, and CTRL + A work to select multiple breakpoints in the Breakpoints pane.

Press F5 to continue to the next break. Hold F5 to continue past multiple breaks until you release F5.

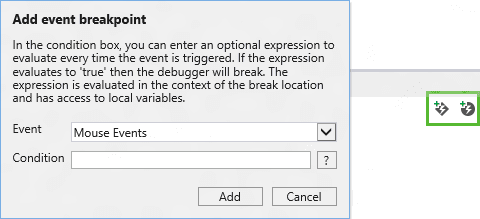

These work much like the breakpoints and tracepoints already present in F12 tools, but instead of being triggered when a specific block of code is executed, they are triggered when a specific event fires. Each has an optional conditional filter to help you narrow down their scope to the specific instance of an event that you want to inspect. They can be added using the Add event tracepoint and Add event breakpoint icons highlighted in the image below.

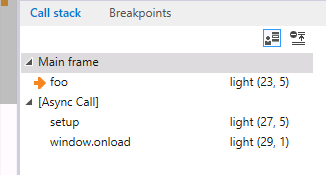

You can now see the call stack for those pesky async calls!

You shouldn't have to reproduce your test case every time you want to analyze data it produces or share that data with a colleague. The import (folder) and export (disk) icons on the UI Responsiveness tool's icon bar let you save your memory snapshots to a file that can be imported later.

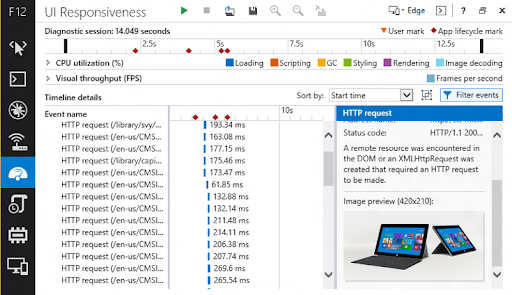

If you've seen an HTTP request for an image and wondered which image it was, the image is now previewed in the event details.

The Filter events button is small but mighty. Hidden behind that button is a menu that lets you filter events in multiple ways and each way has a significant impact.

Event name filter

Filter for any event name containing a match for the filter text.

UI activity filter

Using the checkboxes, you can exclude larger categories of events to make it easier to focus on the area you're investigating. For example, if you're just interested in network activity, you can filter out all the noise of the UI and garbage collection.

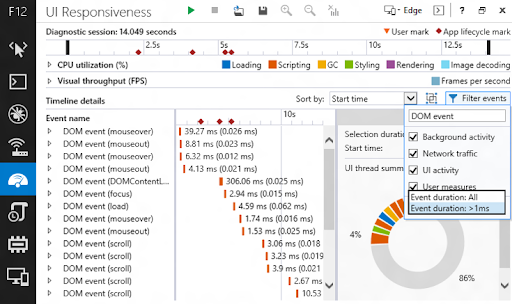

Time threshold filter

This feature filters out top-level events less than 1ms in duration. In many scenarios, this dramatically simplifies the waterfall view and helps you focus on more impactful events.

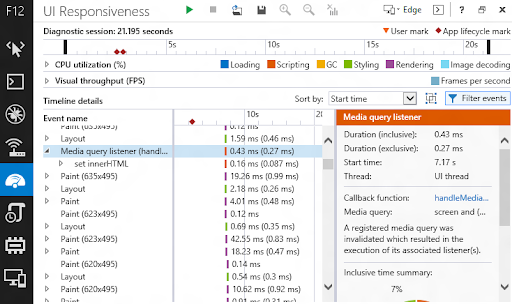

If you use media query listeners or MutationObservers, you can now identify their respective costs when running a performance profiling session.

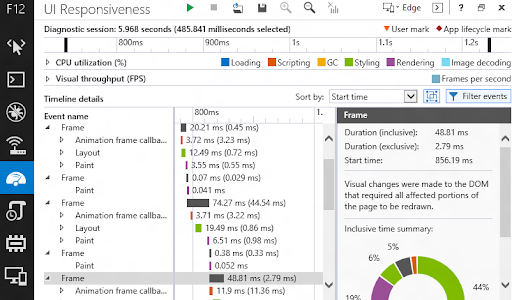

The button between the Sort by dropdown and the Filter events menu toggles Frame grouping. This groups top-level events into their corresponding unit of work (or "frame") during periods of time where animations/visual updates were occurring. The frames are treated like other events, so they can be sorted and filtered, and they provide an Inclusive time summary.

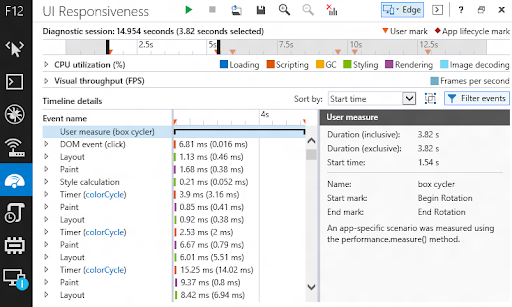

If you use the performance.mark() API to add triangles to the timeline, indicating where specific events happened, the performance.measure() API extends the usefulness of performance marks. Use the performance.measure() to create a User measure event encompassing the time between two performance.mark() events, right click the event, and use the Filter to event option to select just the events between the two marks.

This feature adds colorization to DOM elements, string literals and number literals. Besides making the content within the different F12 tools look and behave more alike, it adds a little more visual interest to the UI Responsiveness tool.

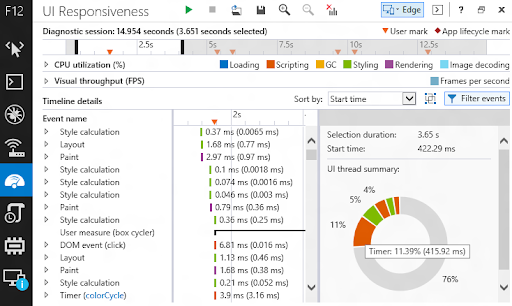

When you select a portion of the timeline, the event details pane will show a summary of the selection. Hover over different segments of the circular chart for a tooltip with the segment's event category.

Using the console.timeStamp() method in your code or in the console during a profiling session creates a user mark on the timeline with the time since the profiling session began.

Dominator folding helps simplify the contents of a snapshot by removing objects from the top-level views that are logically components of another object (e.g. a
within a

, a Scope held on to by a Function) and tend to be extra details that don’t improve your insight into the data, but could waste your time.

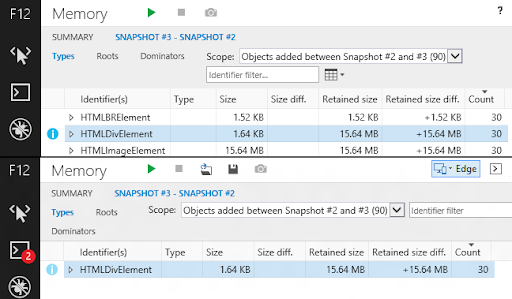

For example, the image below shows before and after views, demonstrating how dominator folding improves the "story" the tool is telling. The folded view shows 30 HTML

elements, which account for 15.64 MB of memory, and are holding on to detached DOM nodes. In many cases, it isn’t important to know the composition of an object, so much as simply knowing that it is too large, or that it is leaking (especially when using third-party libraries).

This feature adds colorization to DOM elements, string literals, and number literals. Besides making the content within the different F12 tools look and behave more alike, it makes memory analysis a little more visually interesting.

Want to be able to investigate the composition of an object without getting unknowingly lost in a circular reference path? This feature detects child references which are circular and “trims” them, so that you don’t get confused by traversing them into infinity. Additionally, it annotates these references so that it’s clear when a reference has in fact been "trimmed."

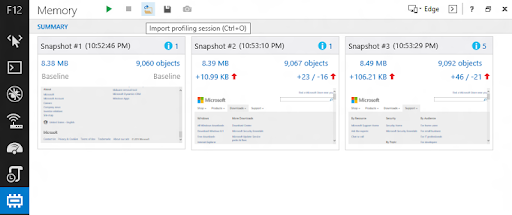

You shouldn't have to reproduce your test case every time you want to analyze data it produces or share that data with a colleague. The import (folder) and export (disk) icons on the Memory tool's icon bar let you save your memory snapshots to a file that can be imported later.

A Persist Emulation settings icon is added to the Emulation tool. This will maintain your current emulation settings until specifically disabled, allowing you to work, close the browser, and come back with your emulation settings intact. To its right is a Reset Emulation settings icon, which quickly resets the tool back to default values.
